Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125sp
Availability: InStock

Zu Hause > produits > iot Druck-Sensor >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Herkunftsort:

CHIAN

Markenname:

WNK

Modellnummer:

WNK125sp

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Mechanische Verbindung:

M6*1, individuell angepasst

Anwendbare Medien:

Flüssigkeit, Gas

Drucktyp:

Messdruck, absolute Druck

Fehlerband der Toale:

±1,0 %

Druckbereich:

0-5bar, 0~10bar, 0~20bar, 0~40bar

Stromversorgung:

5 VDC

Ausgabe:

0.5 bis 4,5 V, I2C

Genauigkeit:

±1%FS

Hervorheben:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Zahlungs- und Versandbedingungen

Verwandte Produkte

Video

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Beste Preis erhalten

Video

ATEX CE 4-20mA 0,5-4,5V I2C -100kpa-100MP Luft Wasserdruckwandler Vakuum Absolute Drucksensor Sender

Beste Preis erhalten

Video

WNK125P 0,5~4,5V 150PSI Drucksensor 5Bar MAP-Sensor Auto-Drucksensor

Beste Preis erhalten

Video

WNK Low Cost Compact Drucksensor 0,5-4,5 V für Luft-Wasser-Öl

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

WNK Low Cost Pressure Sensor for Beer Coffee Machine

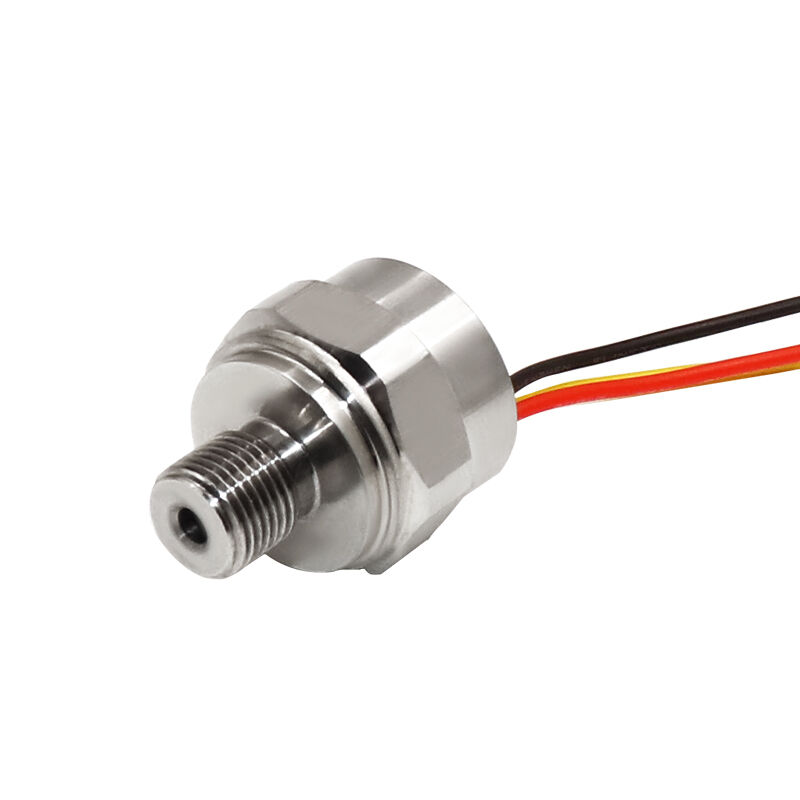

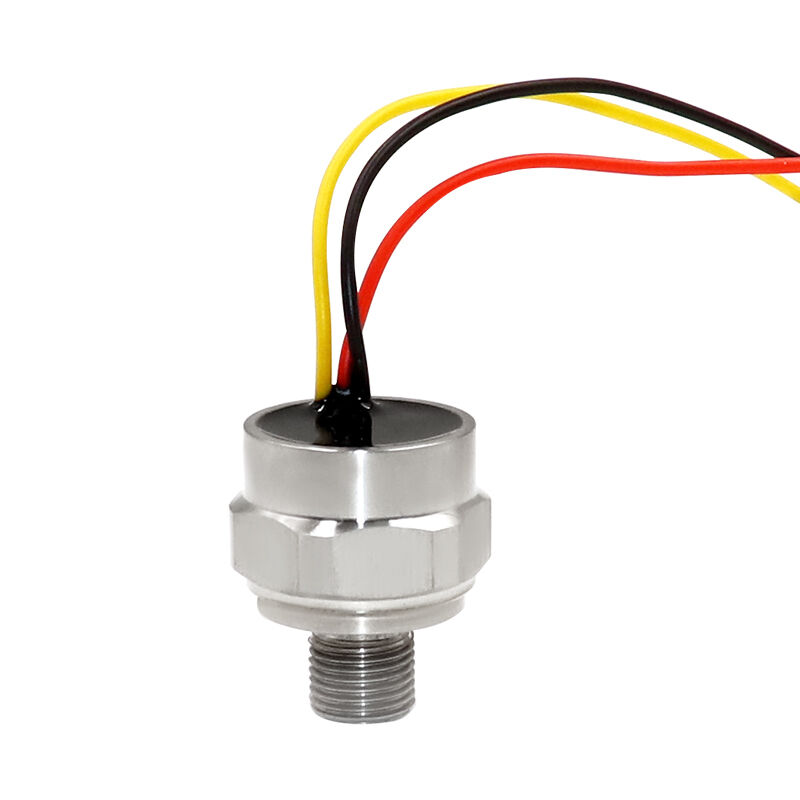

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

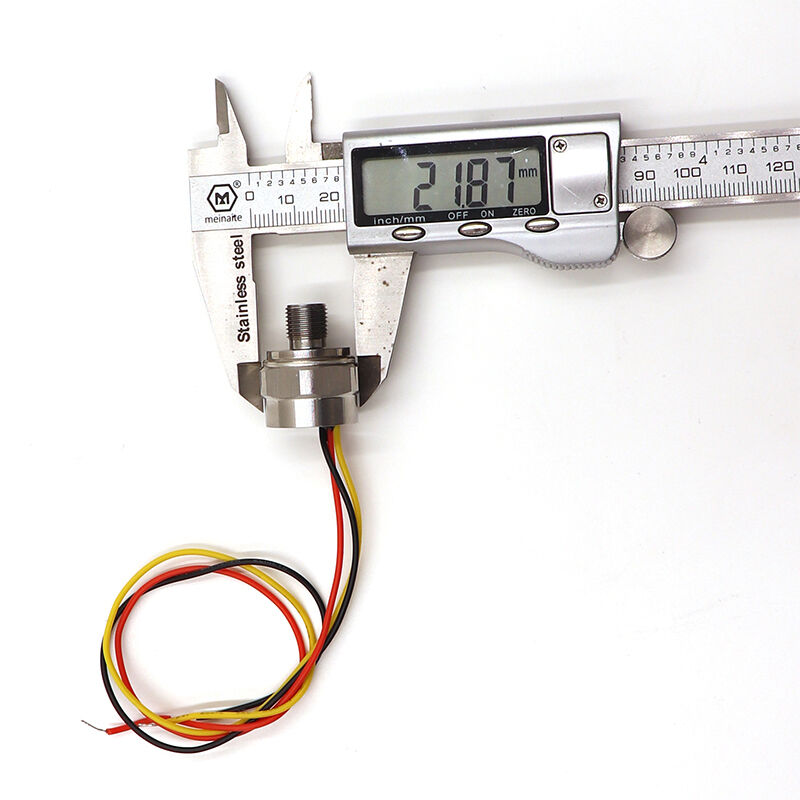

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
