Name: WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125sp
Availability: InStock

Zu Hause > produits > iot Druck-Sensor >

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

Herkunftsort:

CHIAN

Markenname:

WNK

Modellnummer:

WNK125sp

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Mechanische Verbindung:

M6*1, individuell angepasst

Anwendbare Medien:

Flüssigkeit, Gas

Drucktyp:

Messdruck, absolute Druck

Fehlerband der Toale:

±1,0 %

Druckbereich:

0-5bar, 0~10bar, 0~20bar, 0~40bar

Stromversorgung:

5 VDC

Ausgabe:

0.5 bis 4,5 V, I2C

Genauigkeit:

±1%FS

Hervorheben:

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

Zahlungs- und Versandbedingungen

Verwandte Produkte

Video

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Beste Preis erhalten

Video

ATEX CE 4-20mA 0,5-4,5V I2C -100kpa-100MP Luft Wasserdruckwandler Vakuum Absolute Drucksensor Sender

Beste Preis erhalten

Video

WNK125P 0,5~4,5V 150PSI Drucksensor 5Bar MAP-Sensor Auto-Drucksensor

Beste Preis erhalten

Video

WNK Low Cost Compact Drucksensor 0,5-4,5 V für Luft-Wasser-Öl

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

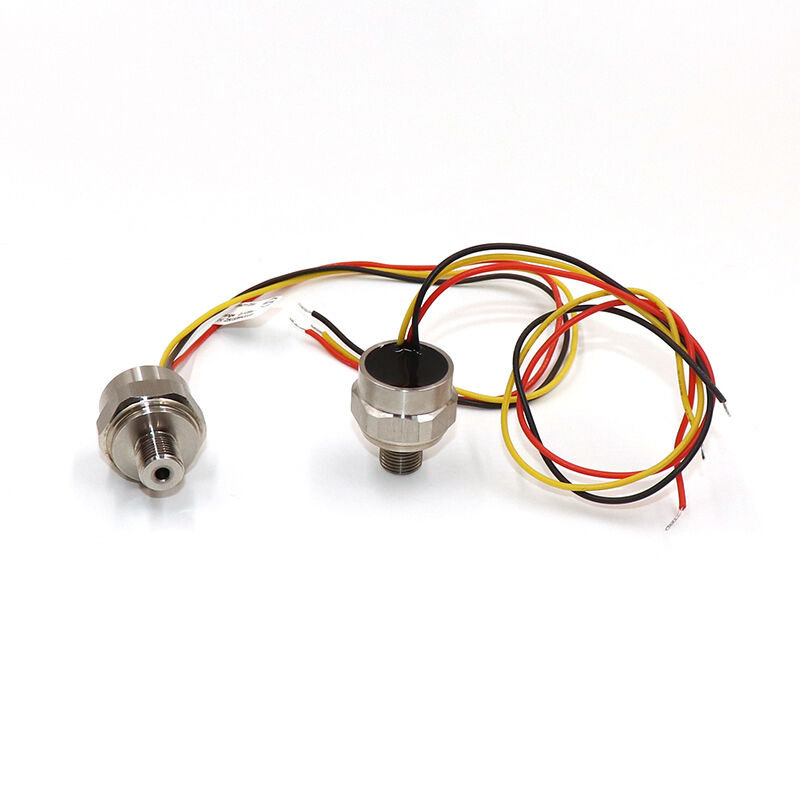

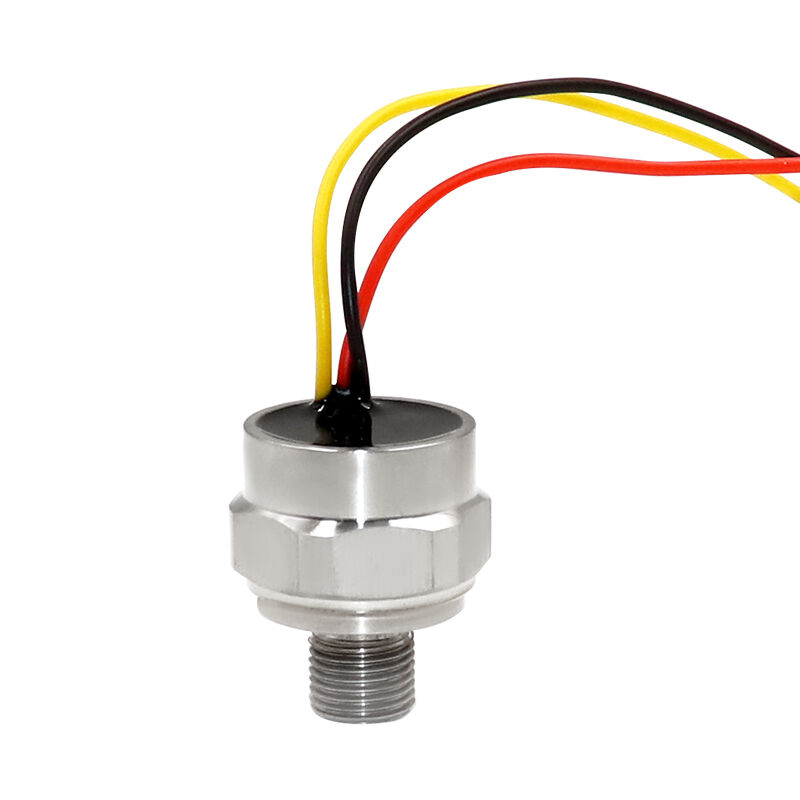

WNK I2C Pressure Sensor for Coffee Machine

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine 0

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

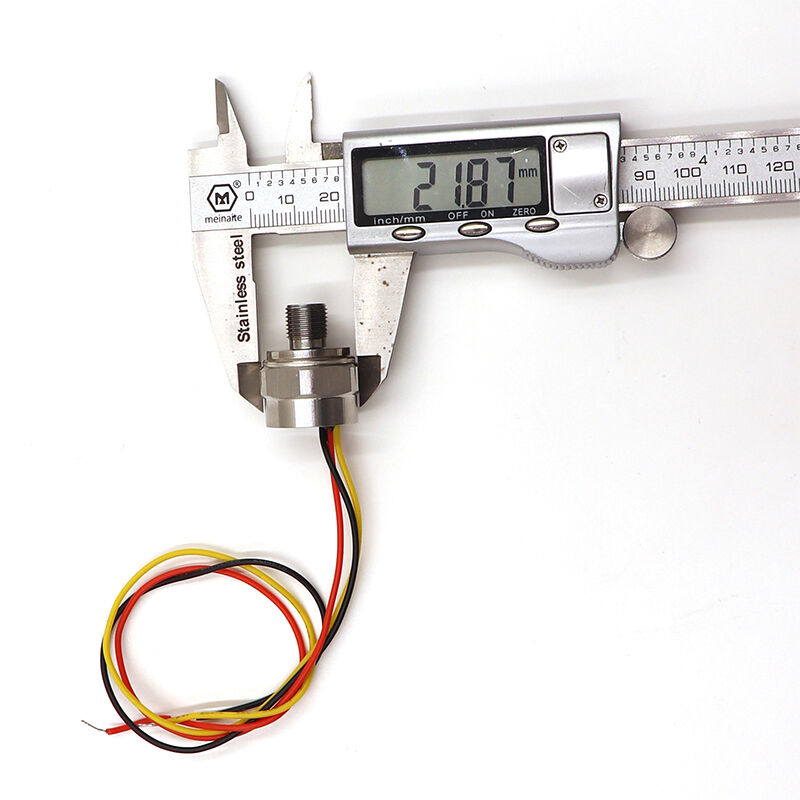

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
