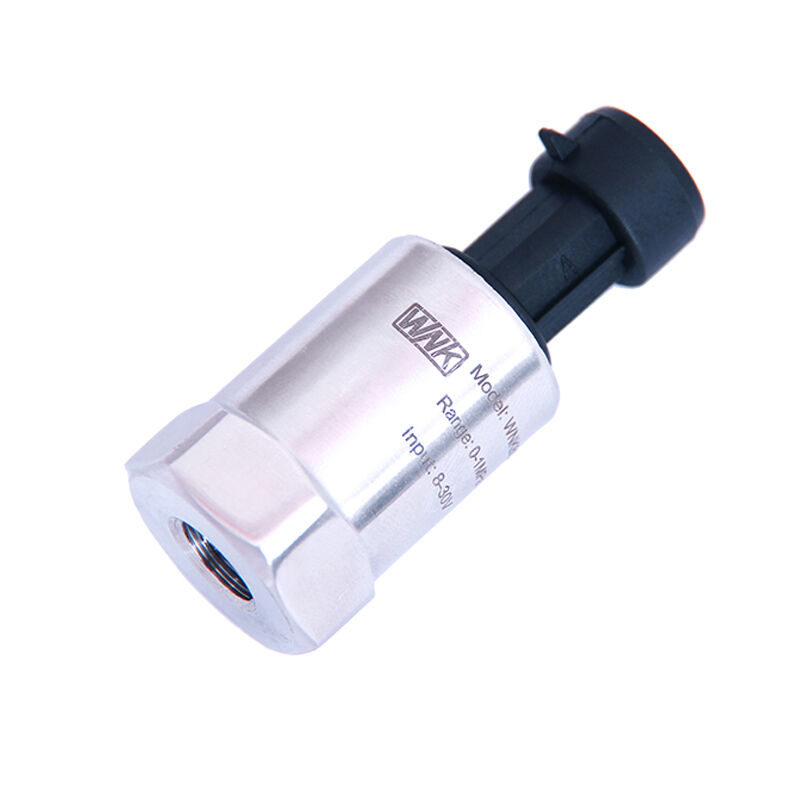

Name: WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80 mA
Price: 10.00 USD
Availability: InStock

Zu Hause > produits > Hvac-Druck-Sensor >

WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Herkunftsort:

Anhui, China

Markenname:

WNK

Zertifizierung:

CE, ROHS

Modellnummer:

WNK80 mA

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Garantie:

1 Jahr

Anwendung:

Klimaanlage abkühlender Hvac

Schutzklasse:

IP65 /67

Ausgabe:

4- 20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Gehäusematerial:

304SS, 316L, 316SS

Gemessene Medien:

Flüssigkeit, Gas, Dampf, Öl, Luft

OEM-Service:

Soem, ODM, Kundenbezogenheit verfügbar

Stromversorgung:

5V DC, DC 12-32V

Druckbereich::

0-15Mpa

Betriebstemperatur::

-40~85 ℃

Genauigkeit:

0,5 % FS 1 % FS

Hafen:

SHANGHAI/NINGBO

Hervorheben:

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Preis

$19.00/Pieces 1-49 Pieces

Verpackung Informationen

100 Stück pro Umkarton

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit

5000 Stück/Stück pro Monat Drucksensor für Klimaanlagen

Verwandte Produkte

Video

Low Cost Water Pressure Sensor Transmitter Manufacture Pressure Measuring Instruments

Beste Preis erhalten

Video

WNK Stainless Steel Universal 4-20ma Pressure Transmitter NPT1/4 0-5V Output 0-200 Psi Air Pressure Sensors Transducer

Beste Preis erhalten

Video

WNK HVAC Kühldrucksensor Drucktransmitter 0,5-4,5v

Beste Preis erhalten

Video

WNK 4-20ma 0,5-4,5V HAVC Luftkompressor Wasserfahrzeug Kraftstofföl Bremsdrucksensor

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
