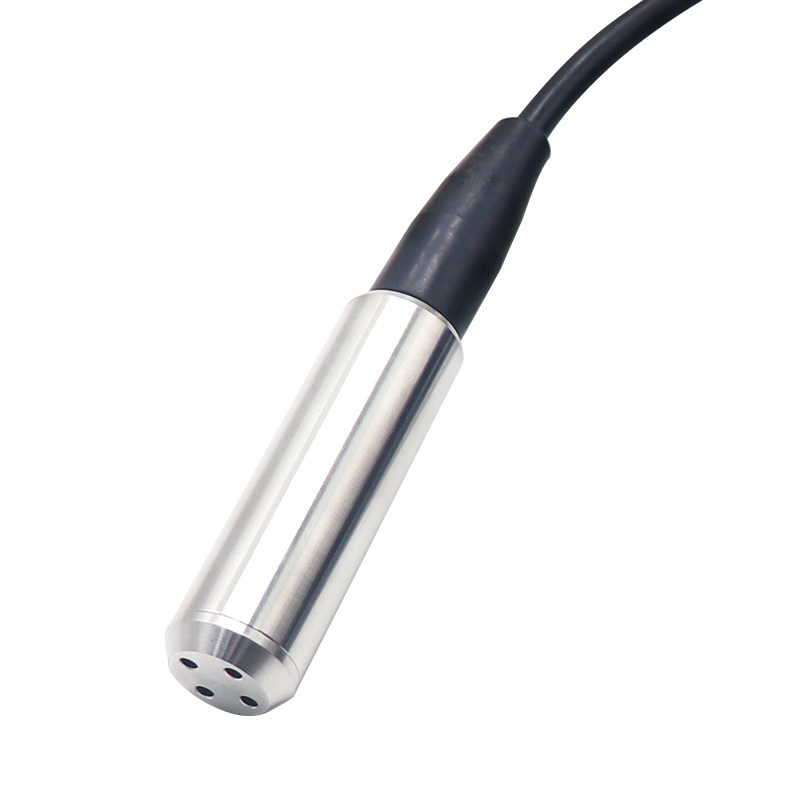

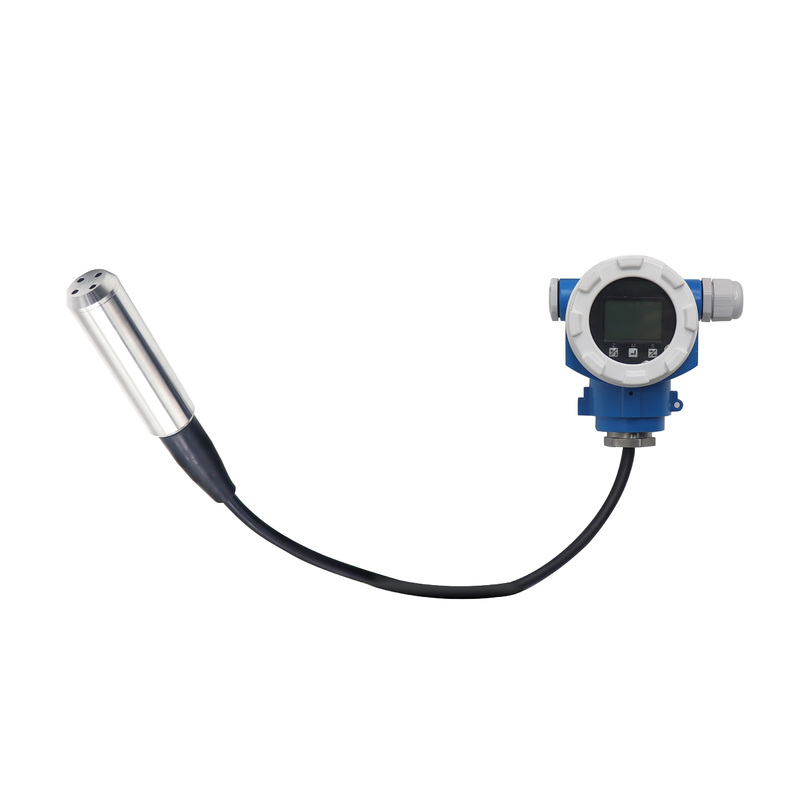

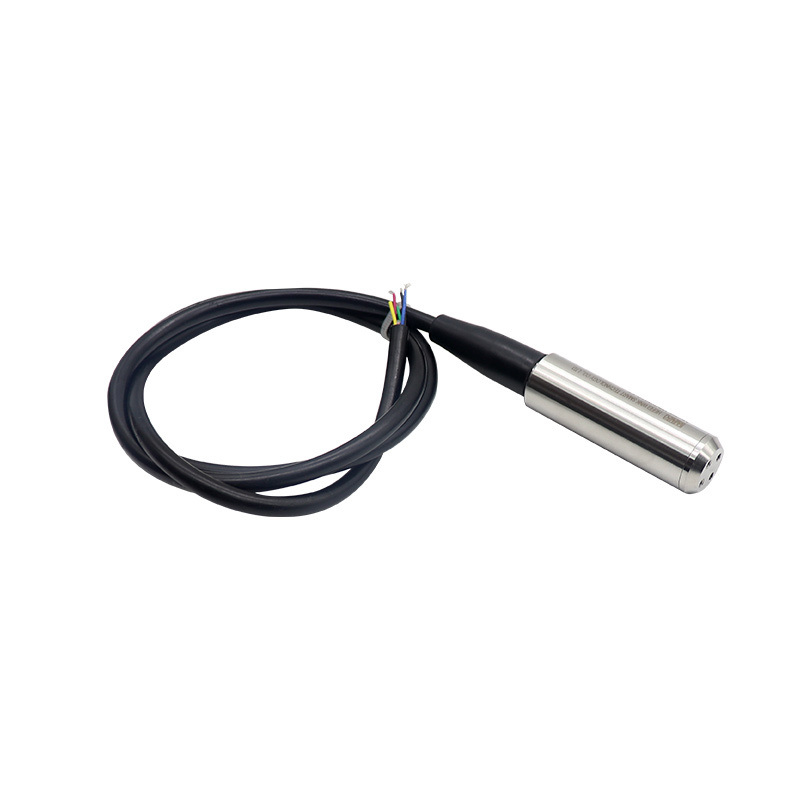

Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Zu Hause > produits > Wasserspiegel-Übermittler >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Herkunftsort:

Anhui, China

Markenname:

WNK

Modellnummer:

WNK8010-TT

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Garantie:

1 Jahr

Individuelle Unterstützung:

OEM, ODM

Druckbereich::

0...2~200 Meter

Ausgabe:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Genauigkeit:

00,2% FS, 0,5% FS,

Stromversorgung:

12~36VDC

Schutzklasse:

IP68

Anwendung:

Regenwasser, Trinkwasser, Abwasser, Abwasser, Meerwasser

Wohnmaterial:

304SS, 316L

Betriebstemperatur::

-40~85 ℃

Typ:

Messgerät

OEM -Service:

Soem, ODM, Kundenbezogenheit verfügbar

Hafen:

SHANGHAI/NINGBO

Hervorheben:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Preis

$35.00 - $50.00/Pieces

Verpackung Informationen

Jedes Set in einen einzelnen Karton, geschützt mit Schaumstoff. Dann in einen Umkarton.

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit

2000 Stück/Stück pro Monat Druckmessgerät

Verwandte Produkte

Video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Beste Preis erhalten

Video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Beste Preis erhalten

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Beste Preis erhalten

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
