Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

Zu Hause > produits > Wasserspiegel-Übermittler >

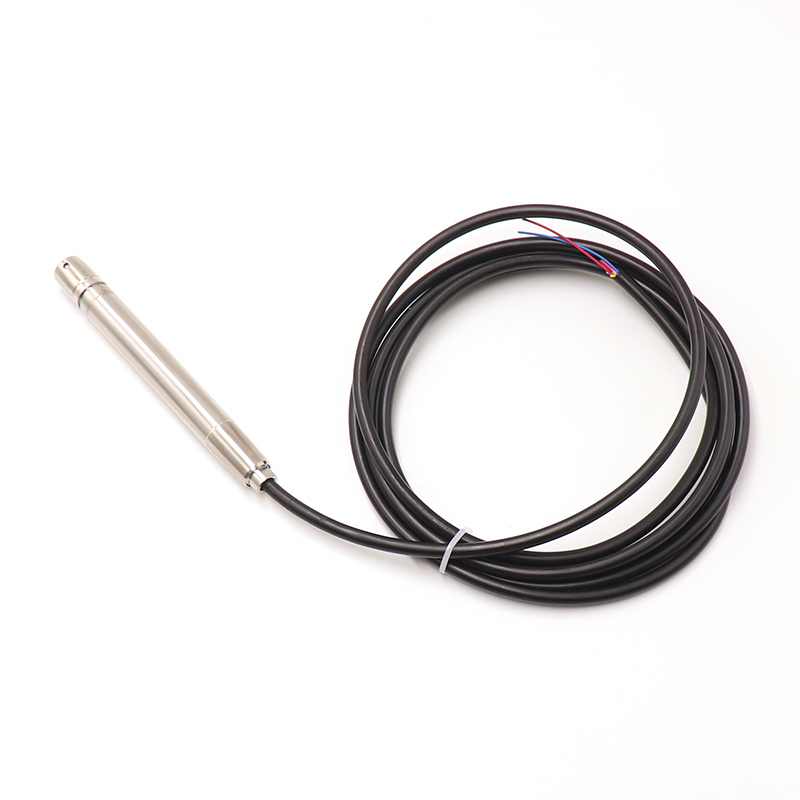

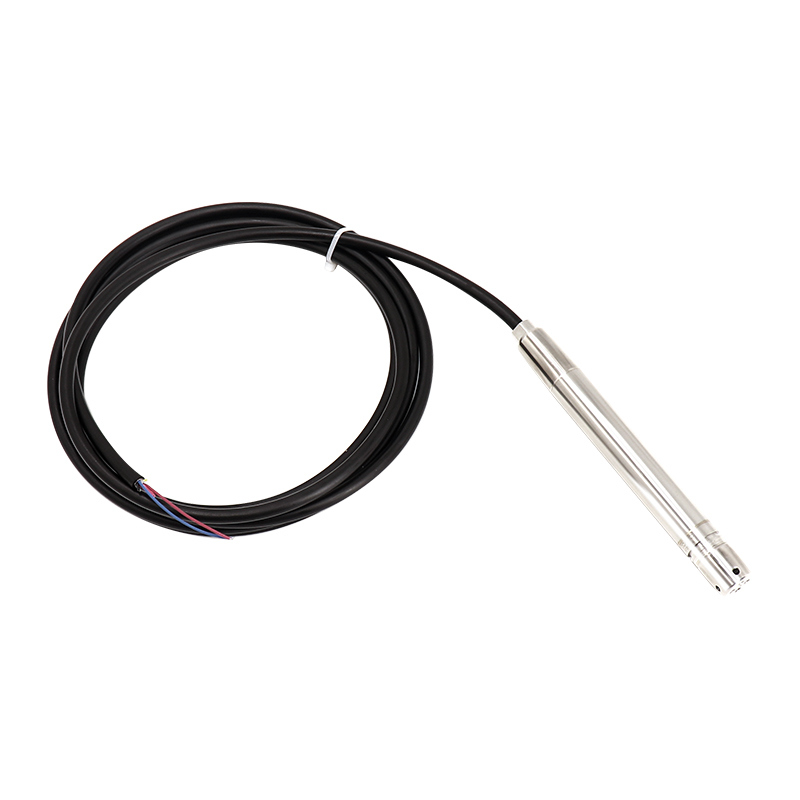

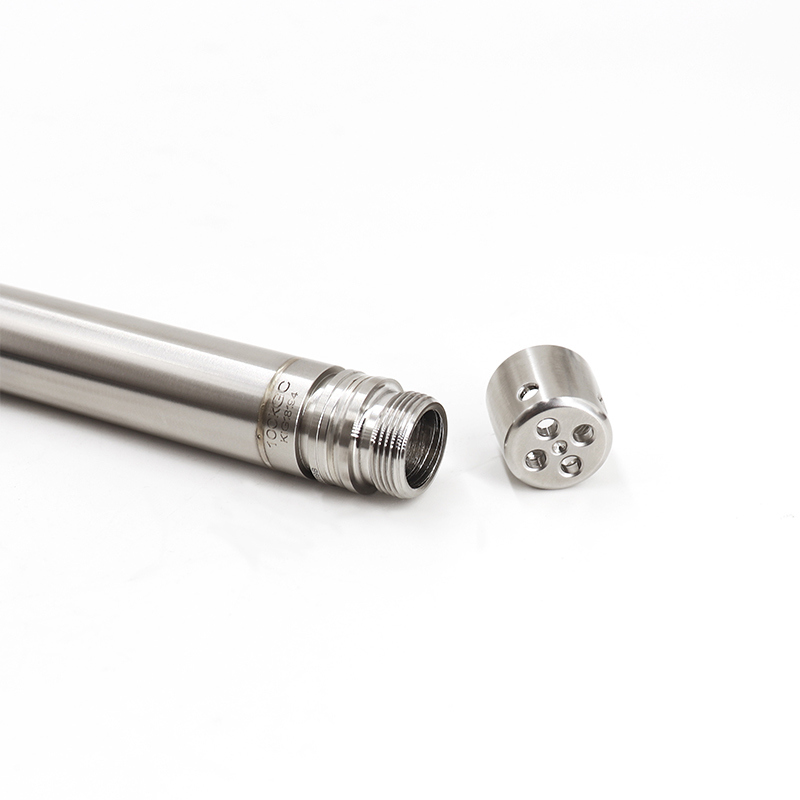

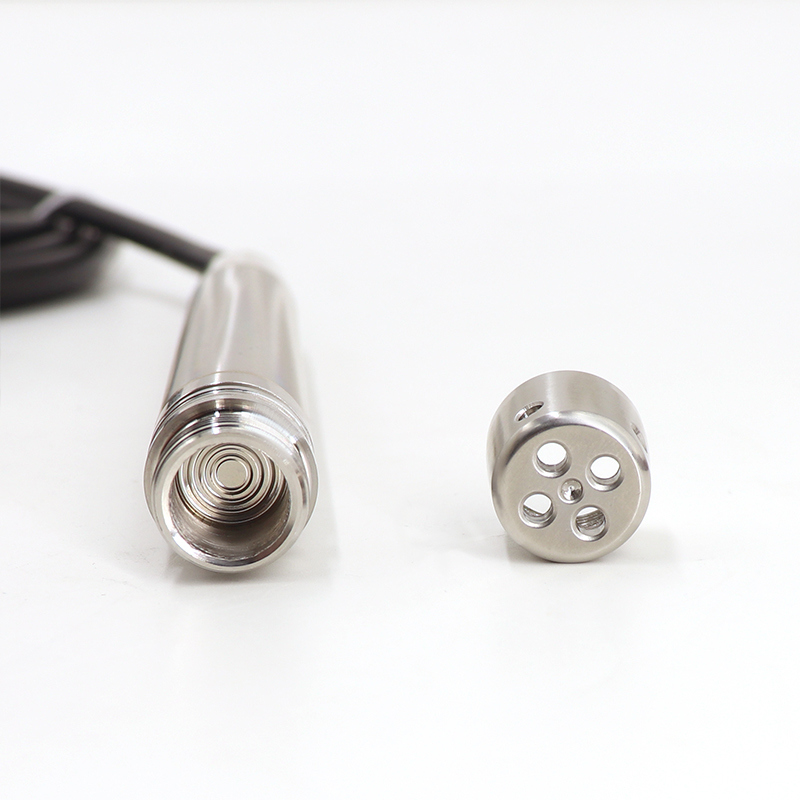

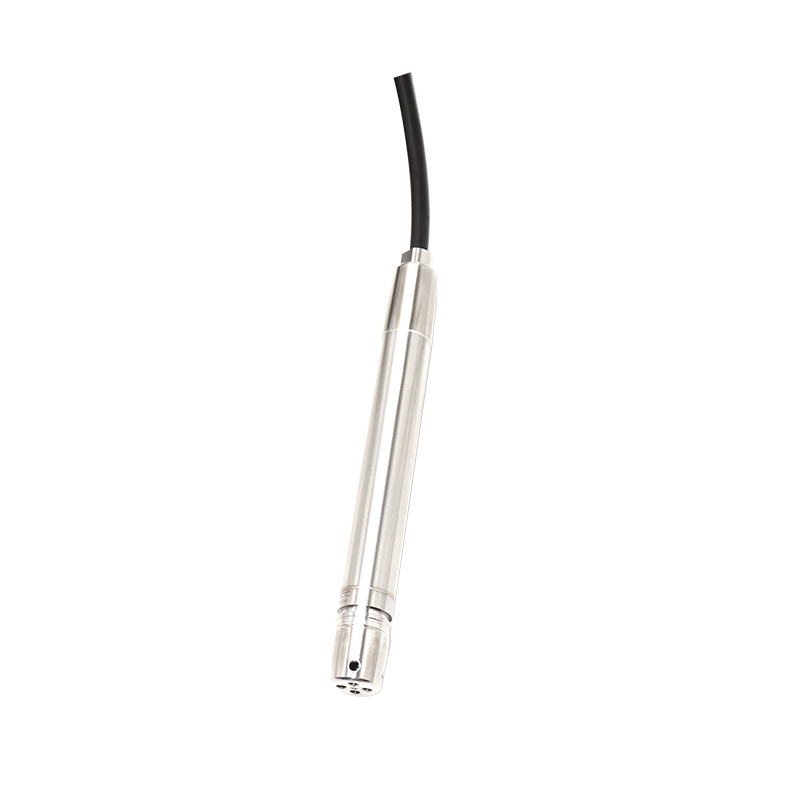

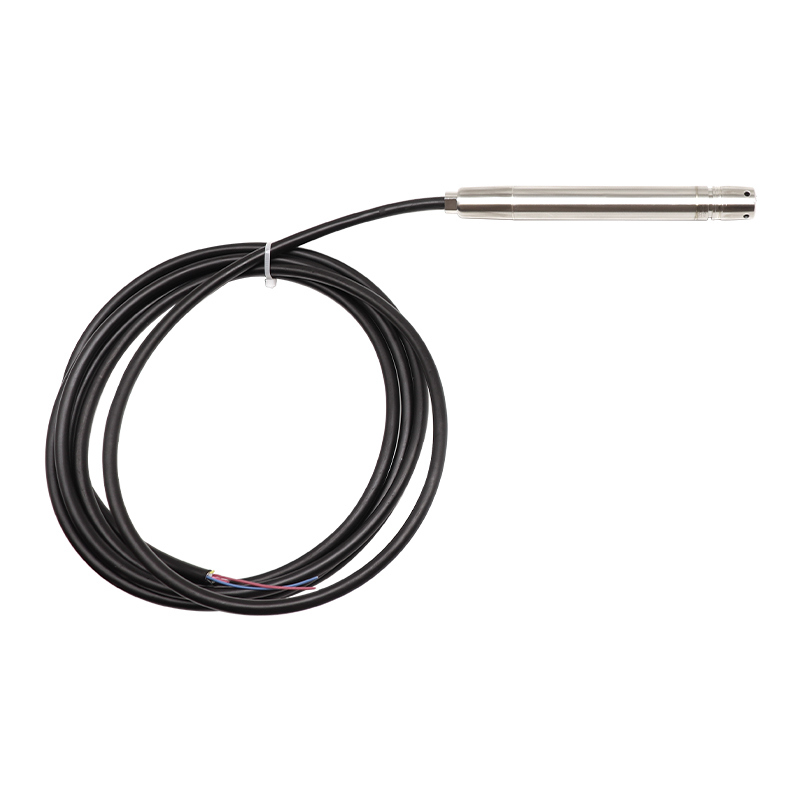

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Herkunftsort:

Anhui, China

Markenname:

WNK

Modellnummer:

WNK8010-19

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Garantie:

1 Jahr

Individuelle Unterstützung:

OEM, ODM

Druckbereich::

0...2~200 Meter

Ausgabe:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Genauigkeit:

00,2% FS, 0,5% FS,

Stromversorgung:

12~36VDC

Schutzklasse:

IP68

Anwendung:

Regenwasser, Trinkwasser, Abwasser, Abwasser, Meerwasser

Wohnmaterial:

304SS, 316L

Betriebstemperatur::

-40~85 ℃

Typ:

Messgerät

OEM -Service:

Soem, ODM, Kundenbezogenheit verfügbar

Hafen:

SHANGHAI/NINGBO

Hervorheben:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Preis

$35.00 - $50.00/Pieces

Verpackung Informationen

Jedes Set in einen einzelnen Karton, geschützt mit Schaumstoff. Dann in einen Umkarton.

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit

2000 Stück/Stück pro Monat Druckmessgerät

Verwandte Produkte

Video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Beste Preis erhalten

Video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Beste Preis erhalten

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Beste Preis erhalten

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
