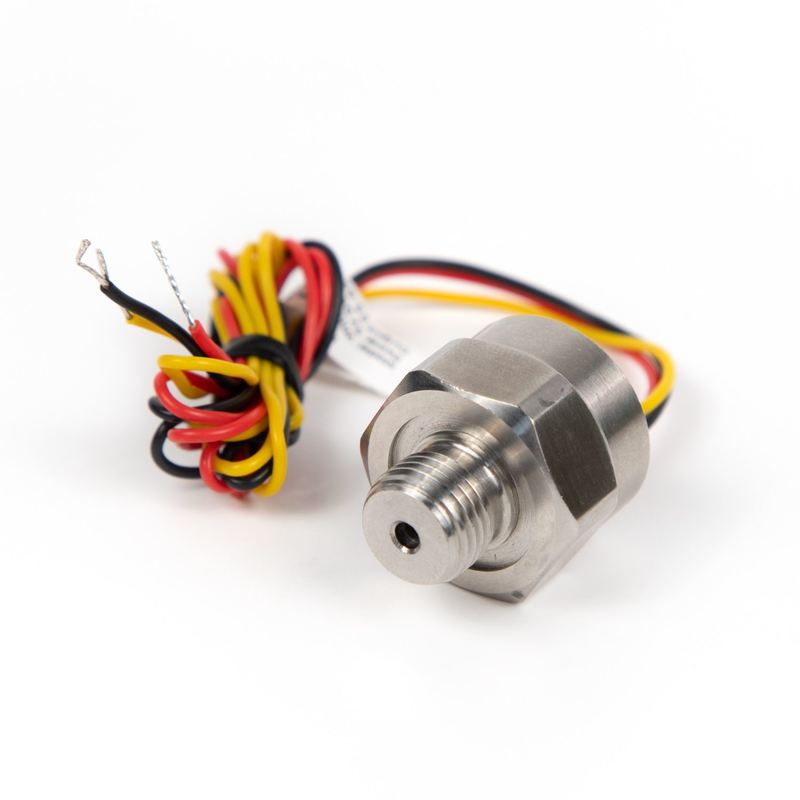

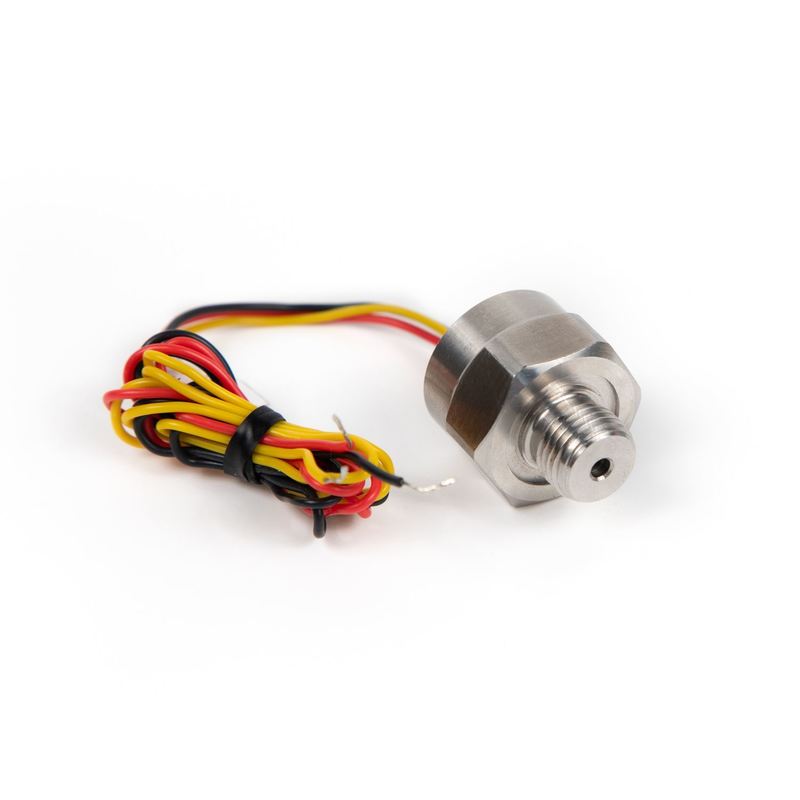

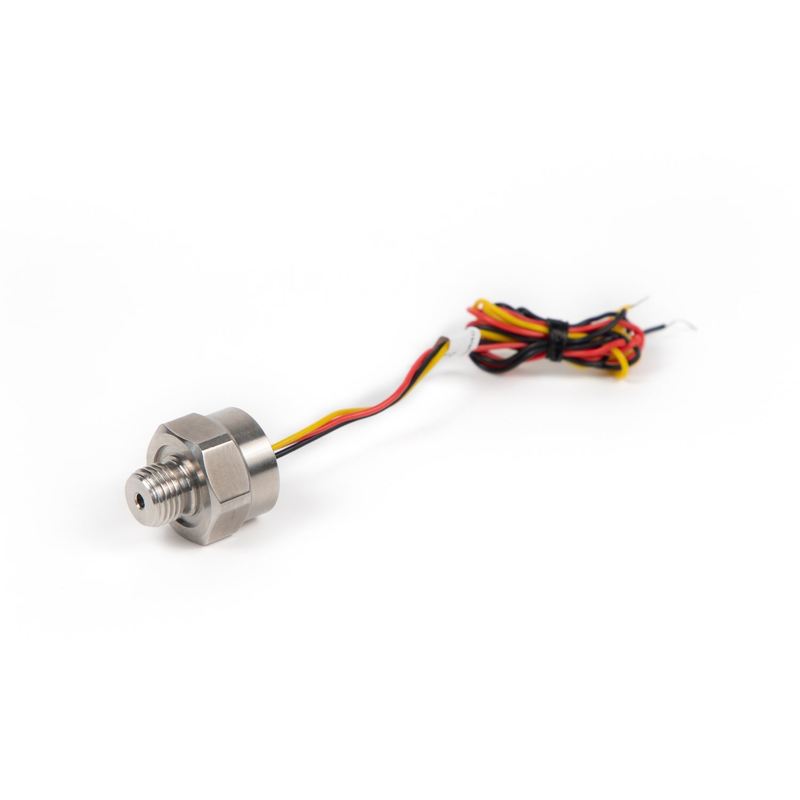

Name: WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK811
Availability: InStock

Zu Hause > produits > Miniaturdruck-Sensoren >

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Herkunftsort:

China

Markenname:

WNK

Model Number:

WNK811

Kontakt mit uns

Bitte um ein Angebot

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

Einzelheiten zum Produkt

Genauigkeit:

1%FS

Measured media:

Liquid, gas and steam

Druckbereich:

0 ~ 150BAR

Ausgangssignal:

4 bis 20 mA

Stromversorgung:

24 V

Umgebungstemperatur:

-40 ~ 110 °C

Prozessverbindung:

G1/4m

Elektrik:

Draht

Material:

Edelstahl

Hervorheben:

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Preis

negotiable

Verpackung Informationen

Neutrale Kartonverpackung oder nach Ihren Anforderungen.

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

T/T, Western Union, MoneyGram, PayPal

Versorgungsmaterial-Fähigkeit

5000/ Stück/ Monat

Verwandte Produkte

Video

0.5-4.5v 4-20ma I2C keramischer Druck-Sensor für die intelligente Feuer-Kontrolle

Beste Preis erhalten

Video

304 Edelstahl 4 - Druckgeber 20mA 0.5-4.5V für Hvac

Beste Preis erhalten

Video

keramischer kapazitiver Sensor des Druck-4-20mA für Klimaanlage-Kompressor

Beste Preis erhalten

Video

niedriger Kosten 4-20mA Öldruckmessfühler für Auto

Beste Preis erhalten

Kontakt mit uns

86-551-65369655

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Product Description

Applicable media	Liquid, Gas
Pressure Range	10bar (bar and psi unit available)
Pressure measurment	Gauge Pressure
Output	I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	3.3VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	G1/4
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application
WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and
etc

Dimensions
